二、性能参数：
|

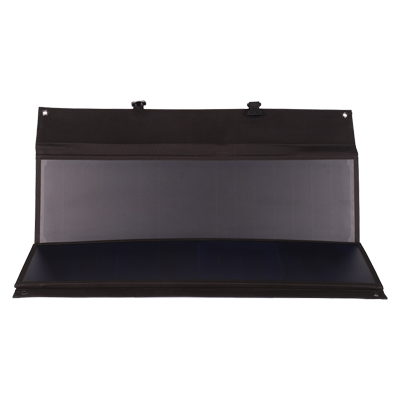

Model 型号 |
MC120M-18-C |
|
|
Peak power Pm(W) 峰值功率 |
120W |
|
|
Open circuit voltage Voc(V) 开路电压 |
21.6V |
|
|
Max. power voltage Vmp(V)峰值电压 |
18V |
|
|
Max. power current Imp(A) 峰值电流 |
6.66A |
|
|
Short circuit current Isc(A) 短路电流 |
7.33A |
|
|
Solar cells Efficiency 电池片光电效率 |
22.5% |
|
|
Solar panel model&number太阳能板数量 |
30W/18V*4pcs 并联 parallel connection |
|
|

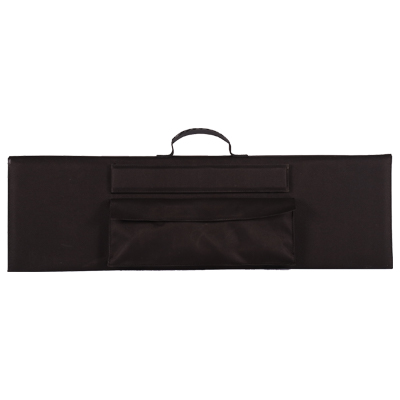

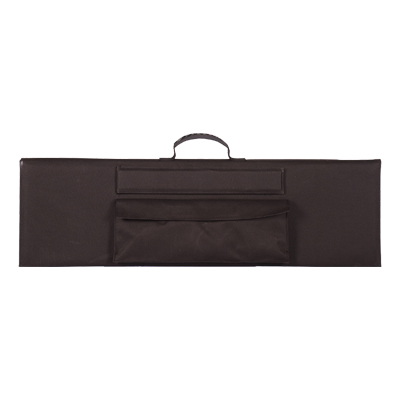

Folded size折叠后尺寸 |
235*770*50mm |
|
|

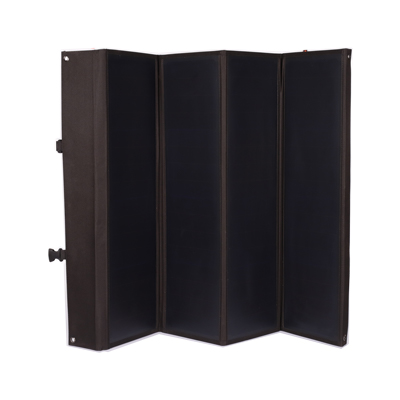

Unfolded size展开后尺寸 |
1085*770*15mm |
|
|
Net Weight参考净重 |
3.4kg |
|
|
solar cell 太阳能电池片 |
HPBC单晶硅电池片HPBC monocrystalline silicon cell |
|
|
Solar panel Front cover(material) 太阳能板表面封装 |
■透明PET transparent PET ☑电池片表面透明复合材料加强保护 The surface of the solar cell is protected transparent composite materials可选Optional |
|
|
Solar panel backboard(material) 太阳能板底板加强材质 |
■玻璃纤维板 Glass fiber board 可选 optional |
|
|
Output port / Optional accessory models 输出端口/可选配件型号 |
1：☑直接出线方式，一拖四线（MC4/DC/安德森/XT60接口） 可选/定制Direct out-of-line mode, one-to-four-wire (MC4/DC/Anderson/XT60 interface) optional /customized |
|
|
solar folding handbag material太阳能包布料（外表面） |
☑黑色(防水型) 颜色/图案可定制 可丝印 Black (waterproof type) Color/pattern can be customized and silk screen printed |
|
|
NOCT/Operating temperature range额定工作温度/工作温度范围 |
额定工作温度：48±2℃ /工作温度范围：-40℃- +85℃ NOCT:48±2℃/ operating temperature range: -40℃- +85℃ |
|
|
Storage temperature limits储存温度范围 |
-10℃- +30℃ |
|
|
Waterproof grade 防水等级 |
IP65 |
|
|
power/voltage/ current temperature coefficient功率/电压/电流温度系数 |
-0.35%/℃ ；-0.272%/℃；+0.044%/℃ |
|
|
Life/ Warranty 质保寿命/质保 |
寿命≥10年/ 质保1年Life≥10years / warranty 1years |
|
|
STC 标准测试条件STC standard test condition |
辐照度:1000W/m2,温度:25℃,AM:1.5 irradiance:1000W/m2, temperature:25℃,AM:1.5 |
|
|
others其他 |
黑色橡胶提手 Black rubber handle 可选optional |
|
